Alle våre exlusive produkter er håndlaget og blir bestilt ved henvendelse. Ta kontakt
124,800 kr
Alle våre exlusive produkter er håndlaget og blir bestilt ved henvendelse. Ta kontakt
124,800 kr

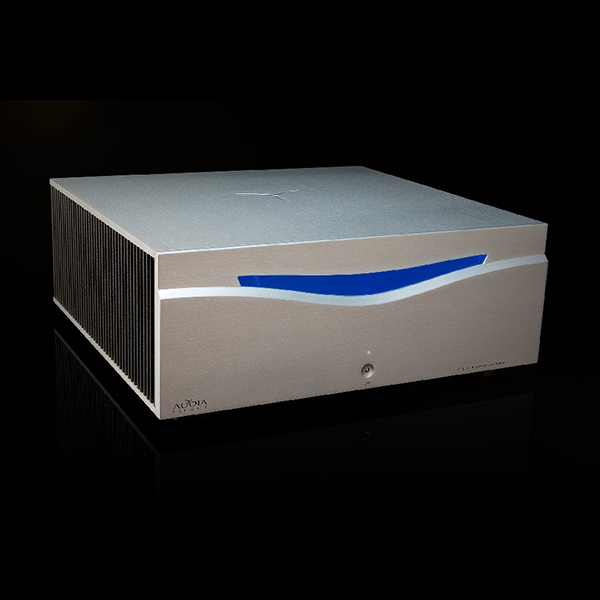

| FLS4 Stereo Power Amplifier | The Audia Flight FLS4 Stereo Power Amplifier is an incredible stereo power amplifier with high response speed (bandwidth more than 0,7MHz), high power (up to 700 Watts), and nearly unlimited speaker driving/control capability. Like the Strumento Series we’ve used our trained human ears to aide us in the FLS 4’s design process. This effort has allowed us to produce an amplifier that more closely achieves our goal of sonic perfection, much like a luthier uses years of experience, craftsmanship, and keen ear to find the perfect tonal character and emotional response for their instruments. |
|---|---|

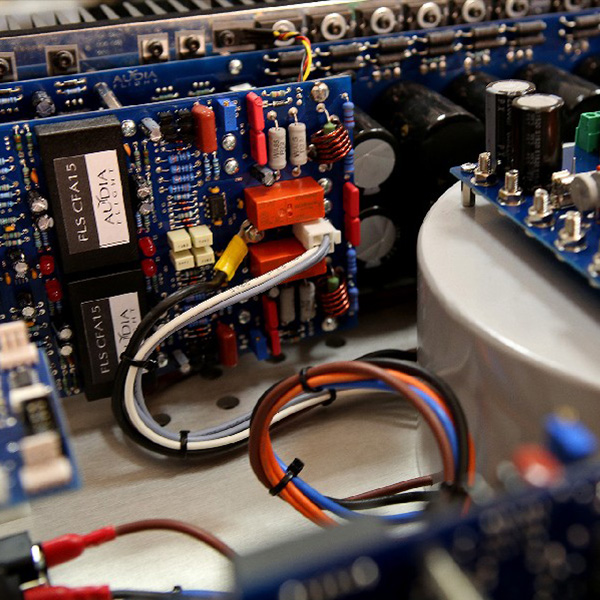

| Info: | Like its Strumento brethren the FLS4’s chassis begins its life as an ultra high grade, bespoke aluminum cast. After the CNC finishing work is completed, every part is then closely inspected and “mirror polished” by hand. Some critical areas are further finished by hand, with shot peening and anodization completing the beautiful metal work. The final touch is an elegant silk-screening process.Similarities to the Strumento Series amplifiers can be found within the FLS4 as well. A long list would include a fully balanced circuitry, highly selected components, 32 high grade power devices, and power supply built with low impedance capacitors (288.000µF alone on the main power suppliers). The FLS4’s gain stage is once again the exclusive Audia Flight design consisting of an entirely class A current-feedback circuitry. |

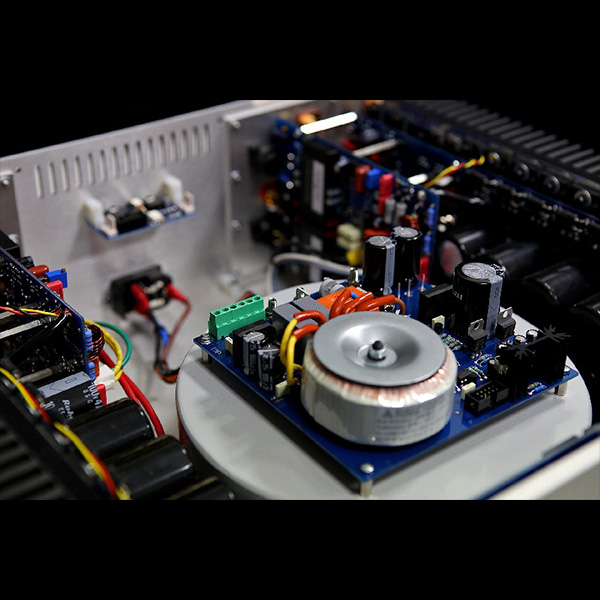

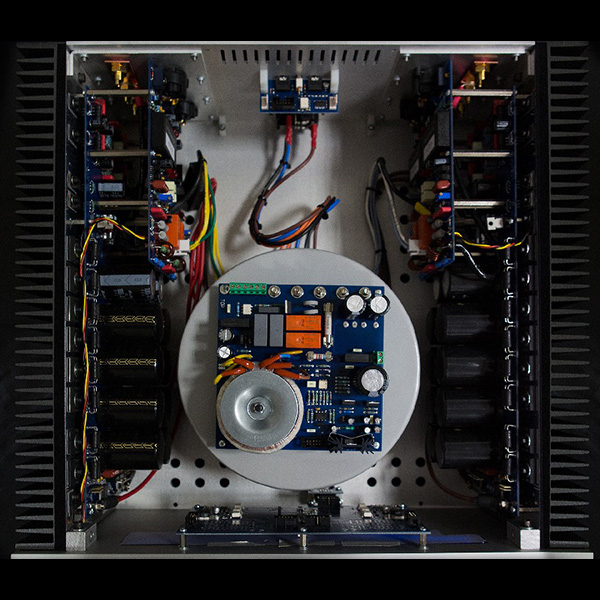

| Info: | And to further isolate this critical part of the amplification process from interference and grant thermal stabilization for all of its discrete components, the gain stage is enclosed within an aluminum box and encapsulated in an epoxy resin. Add to this that the main power supply is made by n.16 18.000µF 50V low impedance capacitors and is then composed of two super high current power supplies per channel, as well as four stabilized independent stages per each channel: two for the input stages and two for the Audia Flight current feedback stage! And, of course, as is our philosophy, one 15VA toroidal transformer is used for the logic control and protection circuit in order to completely isolate it from the audio circuit. With a total then of 12 power supplies, custom printed circuit boards with an extra high-grade surface copper, a 2000VA toroidal audio transformer enclosed within two ferromagnetic shields and encapsulated by epoxy resin powering the output stage, no fuses in the main power supply for the output stage (we find fuses are like a “resistors” and can negatively impact the sound) as a current sensor read by microprocessor is employed, and 200 Watts RMS @ 8 Ohms output power one can see numerous “Strumento-esque” elements have gone into making the FLS 4 Stereo Power Amplifier capable of providing the listener with the best performance and emotional musical experience. |
| Info: | So one can see in the FLS4 Stereo Power Amplifier the Audia Flight familial resemblance is hard at work. Much like our reference Strumento N°4 mk2 Stereo Power Amplifier, the FLS4 Stereo Power Amplifier is designed to bring your music to life and your audio system to another level of perfection. |
| Output power per channel Watts RMS @ 8/4/2 Ohm: | 200/380/700W* |
|---|---|
| Gain: | 29 dB |
| Input sensitivity: | 1.41 Volts RMS |
| Frequency response (1W RMS -3dB): | 0,3 Hz ÷ 0,7 MHz |
| Slew-Rate (@ 8 Ohm: | > 160 V/µS |
| THD: | < 0,05 % |
| S/N Ratio: | 110 dB |
| Input impedance Unbalanced: | 7,5 kOhm |
| Balanced: | 7,5 kOhm |
| Damping factor (@ 8 Ohm): | > 650 |
| Main voltage AC (50-60Hz): | 100, 110-115, 220-230, 240 V |
| Stand-by power consumption: | less than 1 W |
| Nominal Power consumption (no signal): | 170W |
| Power consumption (200W RMS @ 8 Ohm both channels): | 840W |
| Dimensions and weight: | 450x180x440mm (W x H x D) – 34kg |
| Shipping dimensions and weight: | 575x310x545mm (W x H x D) – 45kg |
